For parts with a mirror pair (left/right), one mathematical model is developed in practice.

Now for any grid it becomes possible to create its mirror copy.

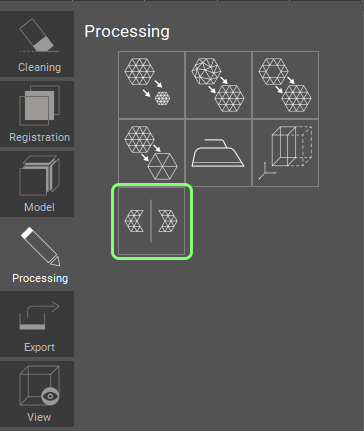

Function is located in the Processing widget and becomes available in Processing mode.

https://lh7-us.googleusercontent.com/4PXCC0vSYm_Ftslqi9cIeeeqE-X9BL0kYs1xhCVC6C8IaaKoJk35_e3qdBt113Cnasw0DVn786VS2FXZVULLdkqunRxhbG72h19WjX1iI2957yxXWWhGU65stBvI-pCAsejFIap68zwDuLwu7QplBHc

Simultaneous creation of mirror copies for a group of meshes is possible.

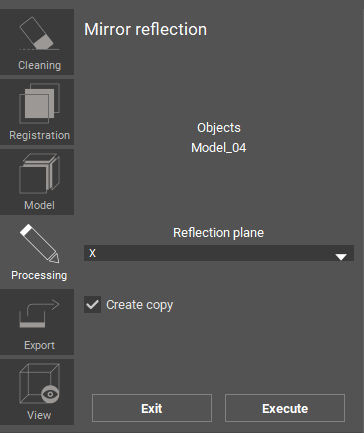

The mirroring is performed relative to the plane specified by the user.

https://lh7-us.googleusercontent.com/s_cn1M75IhOH-FPtSntoykYRuc-k-8m6jGYCMwRN5PvrAybu61IDAg0Nyq9tTsT483Flb8OmEshra6m7v4xscIO-Smu3AI9rWJURrV-mr--bhidIKu2kTFdsO0WKyPdKeCEebxsGEBogq8mJLfoTc9I

Coordinate system planes or planes created by the user can be chosen.

The command will not work if no planes are selected or more than one is selected.
